What’s busbar?
Let’s start with the definition. It’s an electrical conductor from whether copper or aluminum, copper is the most commonly used, carrying current at a specific voltage level used to distribute the electricity over many different circuits. The group of busbars are consisting of 5 bars, one for each phase, one for neutral and one for earth. The earth and neutral are 50% of the phase bars.
Where is busbar used?
Busbars are used in electrical panel boards to connect the incoming feeders to the outgoing feeders in distribution systems. Also it is used to connect high voltage and low voltage equipment.
What are the advantages and disadvantage of using busbars?
Busbars are easy to install, don’t need trays and they are cost effective especially when the ratings and distances increase.
However, in some arrangements of busbars, it requires extra protection which make the system expensive and the reliability of the system is badly effected when any of the bars are faulted.
| Dimension Details :- | Thickness |
| 1 mm (min) | |
| 2 mm (min) | |
| 3 mm (min) | |
| 5 mm (min) | |
| 6 mm -50 mm | |
| Width | |
| 10 mm - 50 mm | |
| 10 mm - 100 mm | |
| 10 mm - 150 mm | |
| 10 mm - 200 mm | |
| 10 mm - 250 mm | |
| Specifications :- | IS: 191, 613 & 1897, BS EN 13601:2002, ASTM B187 |
| Cross section :- | upto 3000 mm² |
| Standard :- | EN 13601: 2002, EN 13602: 2002 |
| Conductivity :- | Above 97% IACS min in Half Hard |
| Above 99.95% in annealed | |
| Purity :- | Copper - 99.9% |
| Specifications (OFC) :- | Copper: 99.99%, O |
| 2: < 10 ppm | |
| Copper: 99.90%, O | |
| 2: < 100 ppm | |
| Type :- | Rectangular, square and any corner radius, Full Round Edge |
Feature
• Greater conductivity for excellent current carrying ability
• Crack-free bends
• Developed for long-functional service
• Good dimensional control for excellent contacts
• Users specification solution
Many Industrial Sectors and Application of Copper Bus Bars
Automotive Radiator, Metal Forming, Gaskets, Plumbing Products, Eyelets, Hardware, Lamp caps, Electrical Fittings, Terminals, Electronic Components, Metal Zip, Flashlights, Handicraft, Decorative Items, Domestic Appliances, Connectors, Shaving Products, Springs, Telecommunications, Locks, Photo Frame etc.

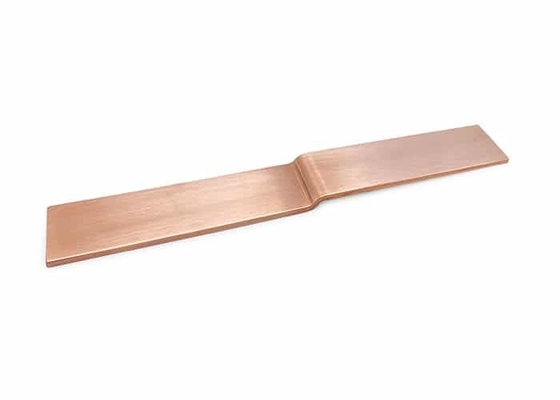

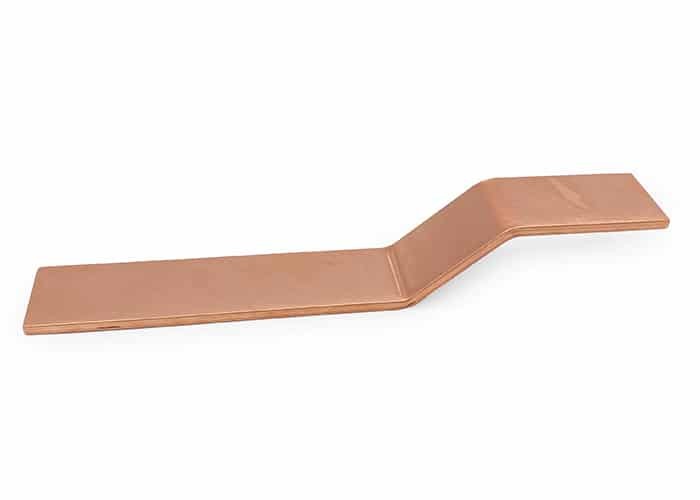

Product Show
Q2. Whether your company supports Trade Assurance order?
Yes , we can (100% product quality protection; 100% on-time shipment protection; 100% payment protection)
Q3. Can we get the some samples? Any charges?
Yes,you can get available samples in our stock.If the samples from new production, we will charge some reasonable cost,
but this amount will be deducted from your first order.
Q4. How do we build up business relations with your company?
Send us your requirement which includes size, coating info, parameters, quantity, destination .
Q5. What is the MOQ?
We can accept small orders.Please feel free to contact us, we can meet your requirements.
Q6. What's your advantage?
With high-quality products and efficient customer service, we adhere to the principle of customer first.
Q7. How long is your delivery time?
Prompt or as your request.
Q8. What is your terms of payment ?
30%TT in advance and the balance against of copy of B/L.
