Copper busbars are a great conductor
Known for its conductive qualities, copper is the perfect material, and often the most popular, for busbars, which need to be able to conduct electricity as easily as possible, due to free-moving electrons. Copper is also a particularly strong material, with a high threshold from damage from high temperatures, which increases the life-span of the busbar.
Busbars have numerous benefits and are a crucial element within electrical distribution systems, especially when simplifying the process of electrical power distribution, reducing overall cost, and allowing for greater flexibility. They can come in various coatings, from copper to aluminium, as well as different sizes. Depending on the material used and the shape or size of the busbar will determine the ampacity (how much electrical current the product can take before it weakens).
More compact and robust than a wiring harness
Although more expensive than a wiring harness, in the long run, a busbar will last longer, and therefore not require replacement as often.
Distributes power efficiently
Energy efficiency is a particular focus for many businesses in the 21st century and utilising busbar systems can aid in reducing energy consumption. This is because of the nature of the systems, they can be easily adapted for renewable energy integration - an important point to think about with the changing world of energy.
| Dimension Details :- | Thickness |
| 1 mm (min) | |
| 2 mm (min) | |
| 3 mm (min) | |
| 5 mm (min) | |
| 6 mm -50 mm | |
| Width | |
| 10 mm - 50 mm | |
| 10 mm - 100 mm | |
| 10 mm - 150 mm | |
| 10 mm - 200 mm | |
| 10 mm - 250 mm | |
| Specifications :- | IS: 191, 613 & 1897, BS EN 13601:2002, ASTM B187 |
| Cross section :- | upto 3000 mm² |
| Standard :- | EN 13601: 2002, EN 13602: 2002 |
| Conductivity :- | Above 97% IACS min in Half Hard |
| Above 99.95% in annealed | |
| Purity :- | Copper - 99.9% |
| Specifications (OFC) :- | Copper: 99.99%, O |
| 2: < 10 ppm | |
| Copper: 99.90%, O | |
| 2: < 100 ppm | |
| Type :- | Rectangular, square and any corner radius, Full Round Edge |
Feature
• Greater conductivity for excellent current carrying ability
• Crack-free bends
• Developed for long-functional service
• Good dimensional control for excellent contacts
• Users specification solution

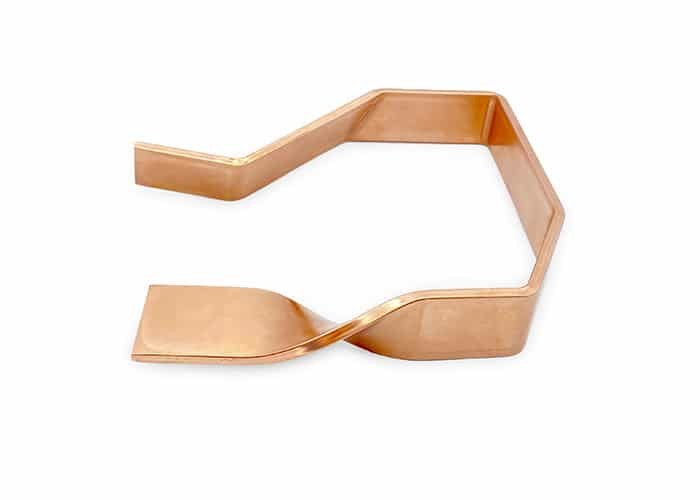

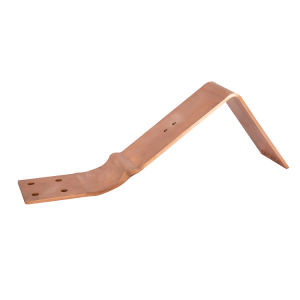

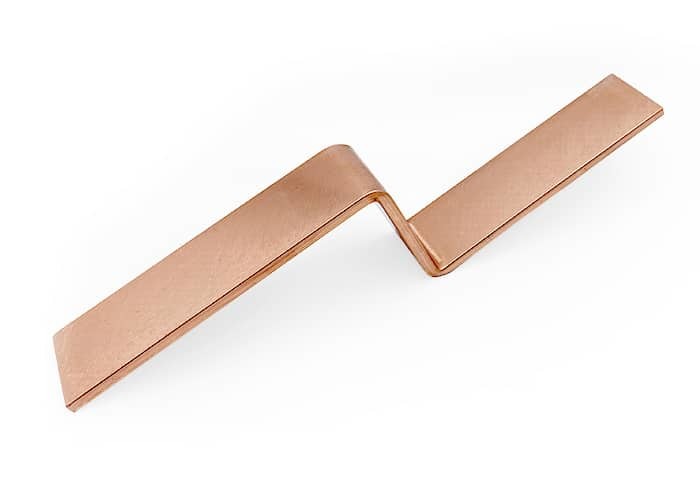

Product Show
Q2. Whether your company supports Trade Assurance order?
Yes , we can (100% product quality protection; 100% on-time shipment protection; 100% payment protection)
Q3. Can we get the some samples? Any charges?
Yes,you can get available samples in our stock.If the samples from new production, we will charge some reasonable cost,
but this amount will be deducted from your first order.
Q4. How do we build up business relations with your company?
Send us your requirement which includes size, coating info, parameters, quantity, destination .
Q5. What is the MOQ?
We can accept small orders.Please feel free to contact us, we can meet your requirements.
Q6. What's your advantage?
With high-quality products and efficient customer service, we adhere to the principle of customer first.
Q7. How long is your delivery time?
Prompt or as your request.
Q8. What is your terms of payment ?
30%TT in advance and the balance against of copy of B/L.
