Description
For rigid electrical connections, copper bus bars offer a very efficient solution. Resistivity in copper bars is very low, 25 in^2 bar 1 foot long is only 0.0000329 Ohms – roughly 8 Watts lost at 500 Amps.
Coatings like Silver, tin or nickel plating for copper bus bars is necessary in high temperature applications. At DC to 60Hz there is some controversy as to which plating is the best because while silver has the highest conductivity, it is also more noble than copper so it will actually accelerate corrosion wherever the plating gets scratched.
| Dimension Details :- | Thickness |
| 1 mm (min) | |
| 2 mm (min) | |
| 3 mm (min) | |
| 5 mm (min) | |
| 6 mm -50 mm | |
| Width | |
| 10 mm - 50 mm | |
| 10 mm - 100 mm | |
| 10 mm - 150 mm | |
| 10 mm - 200 mm | |
| 10 mm - 250 mm | |
| Specifications :- | IS: 191, 613 & 1897, BS EN 13601:2002, ASTM B187 |
| Cross section :- | upto 3000 mm² |
| Standard :- | EN 13601: 2002, EN 13602: 2002 |
| Conductivity :- | Above 97% IACS min in Half Hard |
| Above 99.95% in annealed | |
| Purity :- | Copper - 99.9% |
| Specifications (OFC) :- | Copper: 99.99%, O |
| 2: < 10 ppm | |
| Copper: 99.90%, O | |
| 2: < 100 ppm | |
| Type :- | Rectangular, square and any corner radius, Full Round Edge |
Feature
• Greater conductivity for excellent current carrying ability
• Crack-free bends
• Developed for long-functional service
• Good dimensional control for excellent contacts
• Users specification solution

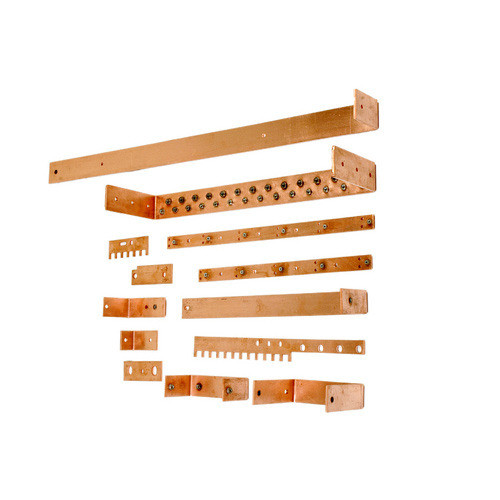

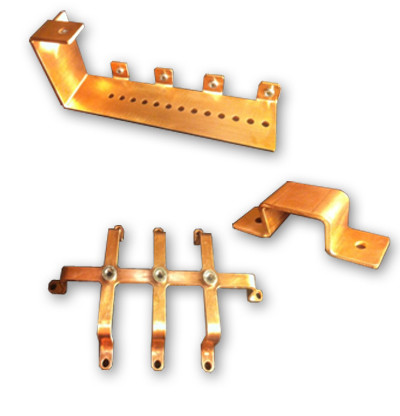

Product Show
Q2. Whether your company supports Trade Assurance order?
Yes , we can (100% product quality protection; 100% on-time shipment protection; 100% payment protection)
Q3. Can we get the some samples? Any charges?
Yes,you can get available samples in our stock.If the samples from new production, we will charge some reasonable cost,
but this amount will be deducted from your first order.
Q4. How do we build up business relations with your company?
Send us your requirement which includes size, coating info, parameters, quantity, destination .
Q5. What is the MOQ?
We can accept small orders.Please feel free to contact us, we can meet your requirements.
Q6. What's your advantage?
With high-quality products and efficient customer service, we adhere to the principle of customer first.
Q7. How long is your delivery time?
Prompt or as your request.
Q8. What is your terms of payment ?
30%TT in advance and the balance against of copy of B/L.
