| Brand Name: | Wuxi Slast/Sylaith Special Steel Co., LTD |
| Model Number: | T1, T2, TP1, TP2, C1100, C1200, Etc |
| MOQ: | 100KG |
| Delivery Time: | 7-15 days or as requirements |
| Payment Terms: | 30% TT DEPOSIT IN ADVANCE 70% BALANCE OF TT BEFORE LOADING |
| Attribute | Value |
|---|---|

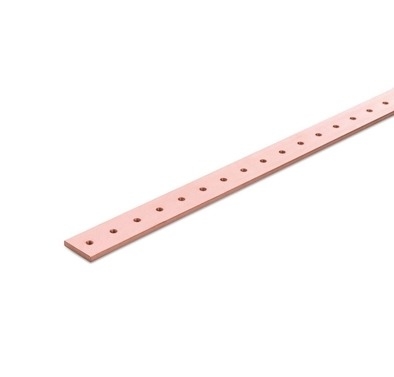

| Material | Copper Grounding Bus Bar |
| Grade | T1, T2, TP1, TP2, C1100, C1200, Etc |
| Type | Rectangular, square and any corner radius, Full Round Edge |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Standard | JIS ASTM DIN EN ISO |
| Cu (Min) | 99.9% |
| Application | Industrial, Construction, Electronics, Etc. |
Our high-quality copper grounding bus bar is manufactured from 99.9% pure copper, offering exceptional electrical conductivity and mechanical strength for demanding industrial applications. Designed for superior performance in power transmission and distribution systems, this product meets international standards for quality and reliability.
| Parameter | Details |
|---|---|
| Purity | Copper: 99.9% / 99.99% (OFC) |
| Conductivity | ≥97% IACS (half-hard) / ≥99.95% (annealed) |
| Thickness | 1 mm - 50 mm |
| Width | 10 mm - 250 mm |
| Cross Section | Up to 3000 mm² |
| Standard | IS: 191, 613, 1897, BS EN 13601:2002, ASTM B187 |
| Types Available | Rectangular, Square, Full Round Edge, Customizable |
| Grade | Half-Hard, Annealed, OFC (Oxygen-Free Copper) |
