| Brand Name: | Wuxi Slast/Sylaith Special Steel Co., LTD |
| Model Number: | C10200 C10300 |
| MOQ: | 100KG |
| Delivery Time: | 7-15 days or as requirements |
| Payment Terms: | 30% TT DEPOSIT IN ADVANCE 70% BALANCE OF TT BEFORE LOADING |
| Attribute | Value |
|---|---|
| Material | Red copper |
| Alloy | Non-alloy |
| Color | Red |
| Length | 10~12000mm, as Required |
| Width | 10mm~2500mm |
| Technique | Cold Rolled |
| Hardness | Soft, 1/2 Hard, 1/4hard, Hard |
| Application | Electrical Semiconductor Chemical Building |

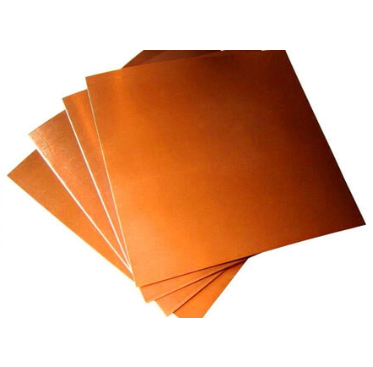

Our C10200 & C10300 Pure Red Copper Plate is a high-performance construction-grade material manufactured to meet JIS H3250-2006, ASTM B152M, and GB/T2040-2008 standards. With 99.9% minimum copper purity, this 4x8 ft (1220x2440mm) sheet offers exceptional electrical conductivity, thermal efficiency, and corrosion resistance, making it ideal for building construction, electrical systems, and industrial machinery.
| Parameter | Details |
|---|---|
| Material Grades | C10200, C10300, C10100-C12500 |
| Standards | JIS H3250-2006, ASTM B152M, GB/T2040-2008 |
| Purity | ≥99.9% Cu (Oxygen-Free Available) |
| Thickness | 0.1mm-500mm (Standard: 0.5mm-6mm) |
| Width | 10mm-2500mm (Standard: 1220mm / 4ft) |
| Length | Custom up to 12m (Standard: 2440mm / 8ft) |
| Hardness | Soft, 1/4 Hard, 1/2 Hard, Full Hard |
| Surface Finish | Mill, Polished, Brushed, Mirror, Oiled |
| MOQ | 1 Ton (Small samples available) |
| Delivery Time | 7-15 days (Express options available) |
| Certifications | ISO 9001, RoHS, IBR |
C10200 (Oxygen-Free Copper) - 99.95% purity, best for high-vacuum & electrical uses
C10300 (Phosphorus-Deoxidized Copper) - Improved weldability for plumbing & HVAC
