| Brand Name: | Wuxi Slast/Sylaith Special Steel Co., LTD |
| Model Number: | C1020, C1100, C1201, C1220, Etc |
| MOQ: | 100KG |
| Delivery Time: | 7-15 days or as requirements |
| Payment Terms: | 30% TT DEPOSIT IN ADVANCE 70% BALANCE OF TT BEFORE LOADING |
| Attribute | Value |
|---|---|
| Material | 110 102 Copper Plate Sheet |
| Grade | C1020, C1100, C1201, C1220, Etc |
| Feature | High Purity |
| Size | Customized |
| Certification | ISO, SGS, BV, ASTM, JIS, AISI, GB |
| Processing | Cutting, Bending, Punching, Welding |
| Application | Structural Engineering |
| Packaging Details | Standard Seaworthy Package |

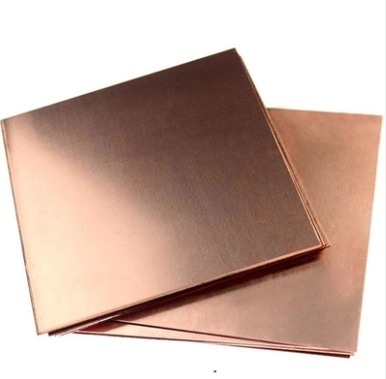

Our Alloy 110 102 Copper Plate Sheets are engineered for structural engineering, architectural applications, motor vehicles, medical equipment, and more. Manufactured from high purity copper, these sheets offer exceptional durability and versatility. Available in various thicknesses up to 0.010", they provide ideal solutions for applications demanding strength, flexibility, and superior conductivity.
| Grade | Cu+Ag | P | Bi | Sb | As | Fe | Ni | Pb | Sn | S | Zn | O |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Refined Copper | ||||||||||||
| T1 (C1020) | 99.95 | 0.001 | 0.001 | 0.002 | 0.002 | 0.005 | 0.002 | 0.003 | 0.002 | 0.005 | 0.005 | 0.02 |
| T2 (C1100) | 99.9 | - | 0.001 | 0.002 | 0.002 | 0.005 | - | 0.005 | - | 0.005 | - | - |
| Oxygen-Free Copper | ||||||||||||
| TU0 (C1011) | 99.99 | 0.0003 | 0.0001 | 0.0004 | 0.0005 | 0.001 | 0.001 | 0.0005 | 0.0002 | 0.0015 | 0.0001 | 0.0005 |
| Grade (JIS) | Temper | Vickers Hardness (HV) | Tensile Strength (MPa) | Elongation (%) |
|---|---|---|---|---|
| C1100 | M (Soft) | ≤70 | ≥195 | ≥30 |
| C1201 | Y4 (1/4H) | 60-95 | 215-295 | ≥25 |
| C1220 | Y2 (1/2H) | 80-110 | 245-345 | ≥8 |
| Other Grades | Y (Full Hard) | 90-120 | 295-395 | ≥3 |
| T (Extra Hard) | ≥110 | ≥350 | - |
Thickness Options: 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1mm, 1.2mm, 1.5mm, 1.8mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 18mm, 20mm, 22mm, 25mm, 28mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm
Customization: We can tailor sizes to your project requirements. Contact us for details.
Standard Dimensions:
Copper's exceptional conductivity makes it ideal for efficient energy transfer applications. Our Alloy 110 102 Copper Sheets undergo cold-rolling to enhance mechanical properties and ensure uniform thickness. Available in various tempers (soft annealed, moderately hard, or full hard), these sheets offer flexibility for diverse engineering requirements. The high purity guarantees superior performance in demanding environments.
A: We are a manufacturer with our own factory producing various steel and copper products.
A: Yes, we offer 100% product quality protection, on-time shipment, and payment protection.
A: Stock samples are free. Custom samples may incur a reasonable charge, deductible from your first order.
A: Send your detailed requirements (size, coating, parameters, quantity, destination) for our best offer.
A: We accept small orders. Contact us to discuss your specific needs.
A: We provide high-quality products, efficient service, and complete customer satisfaction.
A: Prompt delivery or as per your specific requirements.
A: 30% TT in advance, balance against copy of Bill of Lading.
