| Brand Name: | Wuxi Slast/Sylaith Special Steel Co., LTD |
| Model Number: | C10200 C11000 C10100 C12200 C12000 , etc |
| MOQ: | 100KG |
| Delivery Time: | 7-15 days or as requirements |
| Payment Terms: | 30% TT DEPOSIT IN ADVANCE 70% BALANCE OF TT BEFORE LOADING |
| Material | Red copper |
| Shape | Strip |
| Alloy Or Not | Non-Alloy |
| Cu (Min) | 99.9% |
| Samples | Free to supply |
| Processing Service | Bending, Welding, Cutting |
| Hardness | 1/2 Hard/1/4Hard/Hard |
| Application | Electronic |

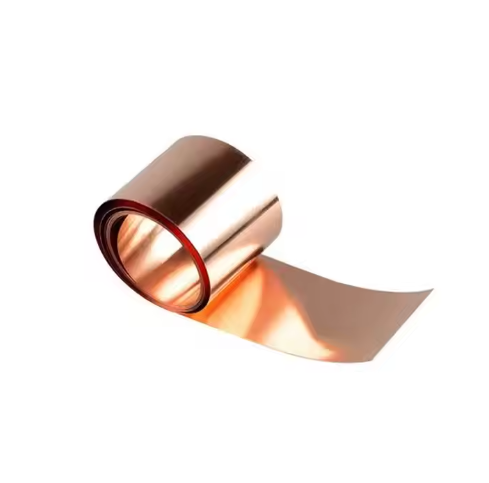

Our 12um High Frequency Characteristic Rolled Copper Foil is made from 99.9% pure red copper and is specifically designed for high-performance PCB (Printed Circuit Board) applications. This copper foil boasts high purity, excellent electrical conductivity, and low oxygen content, making it an ideal material for advanced electronic and mobile phone technologies, including 5G modules.
The foil is treated to achieve a reddened surface, which lowers roughness and enhances the overall surface accuracy. This process ensures that the copper foil maintains high thermal and electrical properties, along with exceptional ductility, corrosion resistance, and weather resistance.
Available in a wide range of custom thicknesses (from 0.009mm to 0.105mm) and widths (from 25mm to 2000mm), this copper foil can be tailored to meet specific customer needs. The material is supplied in coils for ease of handling and application.
| Material | Red Copper (99.9% pure) |
| Thickness | 0.009mm - 0.105mm (Customizable) |
| Width | 25mm - 2000mm (Customizable) |
| Purity | ≥99.9% (Cu + Ag) |
| Surface Treatment | Reddened surface, lower roughness |
| Application | PCB, Mobile Phone 5G Modules, Electronics, Communication Devices |
| Processing Service | Bending, Welding, Cutting |
| Standard | Customizable |
| Brand Name | Sylaith |
| MOQ | Custom (Sample available) |
| Payment Terms | T/T, L/C |
| Package | Standard export seaworthy packaging or as required |
The copper tape is made from 99.98% pure copper foil, ensuring superior conductivity and corrosion resistance.
The standard length is 50 meters, but we offer custom lengths based on your project requirements.
No, the copper tape is non-adhesive, which is ideal for grounding and earthing applications where conductivity is crucial.
The copper tape has a width of 25mm and a thickness of 3mm, suitable for most grounding systems.
This tape is commonly used in electronics, construction, automotive, and industrial applications for electrical grounding and earthing systems.
The copper tape is packed with shrink film and bubble film to ensure it is securely protected during transit. It is then placed in stable cartons.
We accept payments via T/T, L/C, or credit card through Alibaba.
